In-line automatic taping machine

Description :

New generation Tape Reel packaging machine which has already taken patents in several countries. Designed to be simple, easy operated; tape width adjustment can be finished within 10 seconds without any tool. T&R supports devices packaged in 8~88mm width tape. With advanced characteristics this T&R offers the best solution for manufacturing process



Features :

  • Precise Ball Screw synchronous parallel adjustment of the rail width, finish tape width adjustment within 10 seconds without tools.
  • PSA (Press sensitive adhesive) and hot melt sealer.
  • Patent positioning device of tape width, user can fine-tune the tape width.
  • Two sets of press blade moves up and down through precise rail and use micrometer to synchronously adjust the position of upper press blade and blade holder. Able to independently control press, speed and temperature so that it can ensure the best sealing quality.
  • Driven by Japanese SMC Ø16mm cylinder. Changeable press blade & blade base and easy maintenance.
  • Equipped with stepper motor to drive ratchet mechanism
  • Precise internal counter.
  • Dual desktop design: small device packing can be operated by 2 operators at them same time.
  • Modular design and programmable control.
  • CE certificated
  • Protection covers for heat sealer to avoid scald

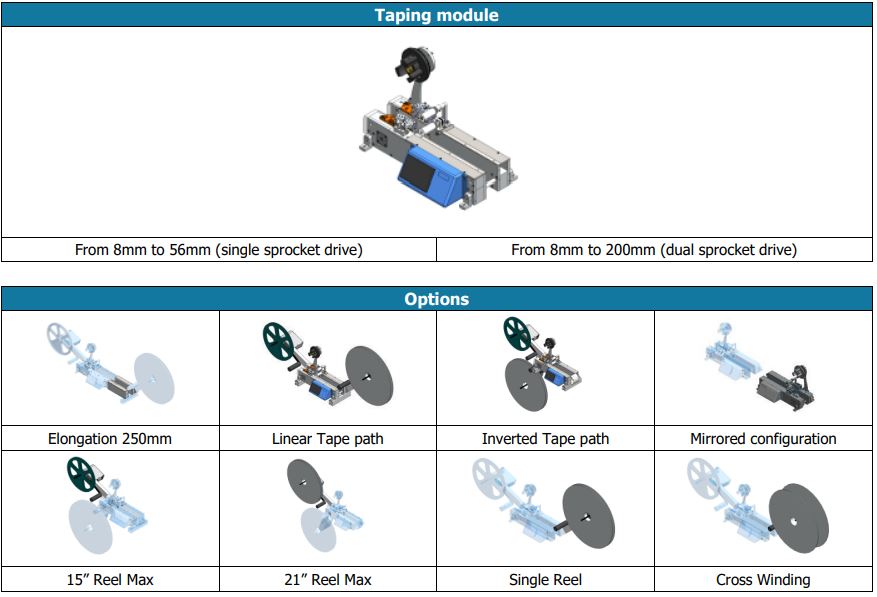

Specifications:

 Applicable Tape Width

 8~88mm

 Feeder

 Ø200~Ø550mm

 Sealer

 PSA and Hot sealing

 Power supply

 230 vac 50/60Hz

 Air

 5,0 Kg/cm²

 Temperature control  0~260°C
 Speed  150mm /sec MAX
 Control   Microcomputer PID
 Counter   High-brightness LED
 Weight  30 Kg
 Size    L 440 × P 360 × H 530 mm
