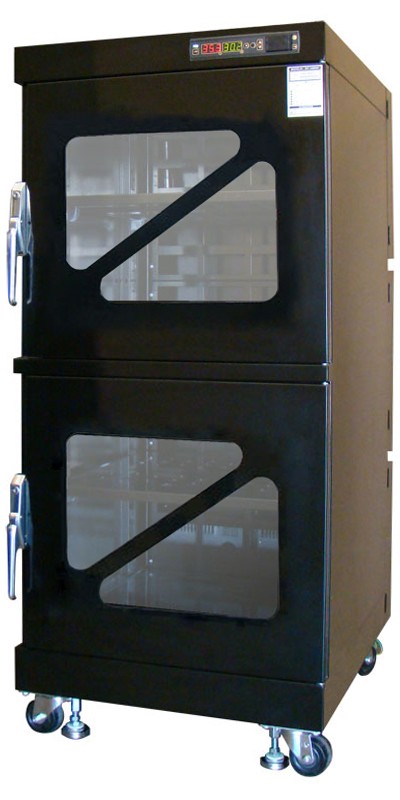

Baking 40℃ Dry Cabinet T40W-480

Description:

The dry cabinets from the X2B range are fully auto dry cabinet designed to be stable at ≦5%RH & 40°C without adjustment according to the J-STD-033D standard for moisture sensitive SMT components (MSL 2 up to 6)

Our Dry cabinets are modular designed (body, power bloc, display with probe, dryer, heater, shelves,...) this allow to easily change or replace the configuration.


Specifications:

Number of doors:

1 doors
Humidity Range: ≦5%RH
Temperature range Ambient temperature or 40°C

External dimensions (L×P×H):

600 × 810 × 1 405 mm

Capacity:

680 Liters

Shelves:

3

Shelves loading capacity:

100 Kg

Display Accuracy:

±3%RH - ±1°C

Display set resolution:

0,1%RH - 0.1°C

Humidity management software:

Humidity Manager for drawing the curve of RH and Temp

RS-232 port:

Yes

Alarm:

Sound and light

Color:

Black

Structure :

1mm carbon steel with antistatic paint

Windows:

2 antistatic glass windows, compressing handles.

Wheels

4 antistatic 3" wheels, two of them with brakes

Grounding:

1.0MΩ (2 meters lenght)

Surface resistance:

103 ~109 (Surface resistance)

Power consumption:

Max. 585 Wh - Moy. 105Wh

Power supply:

230V – 50/60Hz

Accessories:

  • Flash Alarm
  • Full Doors (specify at the order)
  • Data Logger/Reader (acquire data from RS232 port)
  • Slide shelves

*The best performance is achieved under the ambient condition below 25°C and 50%RH.
