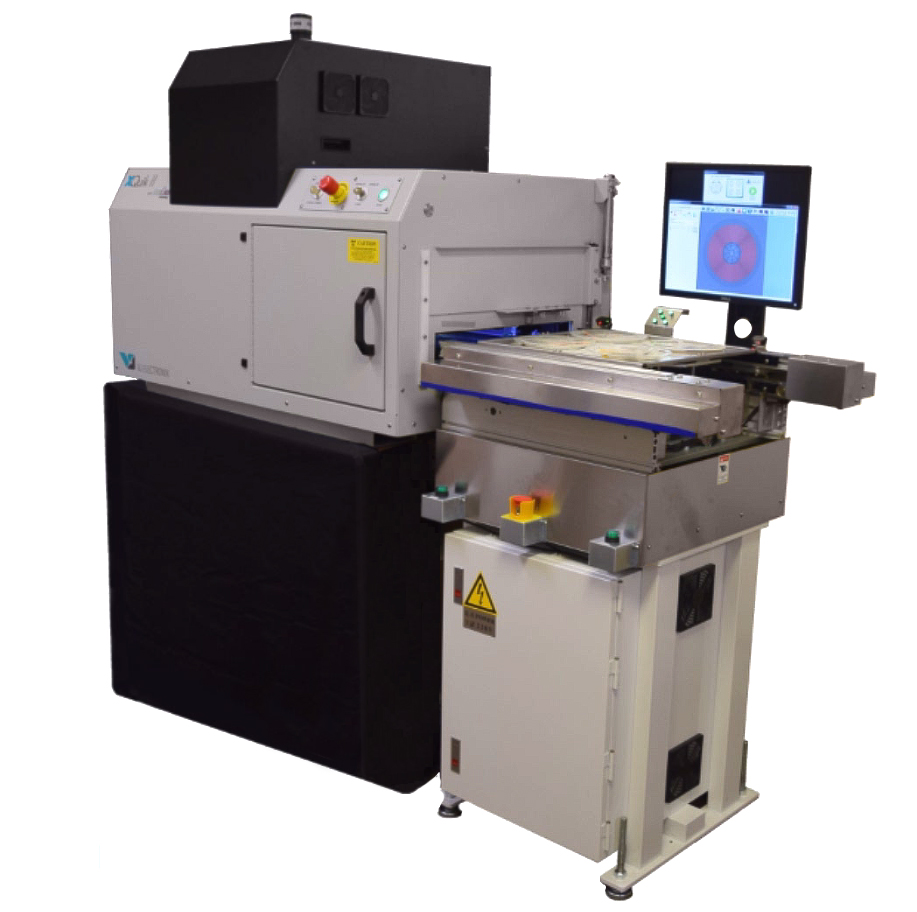

X-Ray counter with loader

W-Tech_Comptage-automatique-connecteurs-3-broches
W-Tech_Comptage-automatique-composants-en-bobine2

See the X-Ray counter video's

Description :

The revolutionary XQuik II with AccuCount Technology is now faster than ever. With available material handling automation, the XQuik system automatically counts components at up to twice the original speed. The new two-level conveyor provides automatic load and unload of reels. The operator may scan barcodes, apply labels and transfer reels while scanning and counting of the next reels takes place providing a significant throughput increase


Specifications:

  • Automatically "counts" components as small as 01005 on 7”, 13” and 15” reels or JEDEC trays (one by one)
  • Can count through antistatic moisture barrier bag (without HIC or desiccant)
  • Launch operation by a simple pressure on the start button
  • Few second cycle time:
    - One reel 13” / 15” = 25 seconds
    - Four reels 7” = 45 seconds
  • Connect to E.R.P. software for seamless inventory control
  • Substantially speed up part counting process
  • Part counting accuracy over 99%
  • May also be used for board’s inspection
  • 100 μSievert exposure
  • CE norm compliant


Dimensions :

  • External Dimensions: 42.5" x 30" x 40"
  • Chamber Size: 16.25" x 16.25" x 6"
  • Viewable Area: 16" x 16"

Imaging Station:
  • Image resolution: 54μ pixel pitch
  • Line pair resolution: 7Ip/mm


Imaging Software Features:

  • Image archiving
  • Window levelling
  • Digital zoom
  • Annotations


X-Ray Specifications:

  • Beam orientation: Top, Down
  • Normal Anode Voltage: 40–80 kV
  • Normal maximum anode current: 0.7mA


Technical specifications:

  • Power: 100 – 240 V, 1500 W
  • Weight: 159 Kg



X-Ray counter with loader video's
