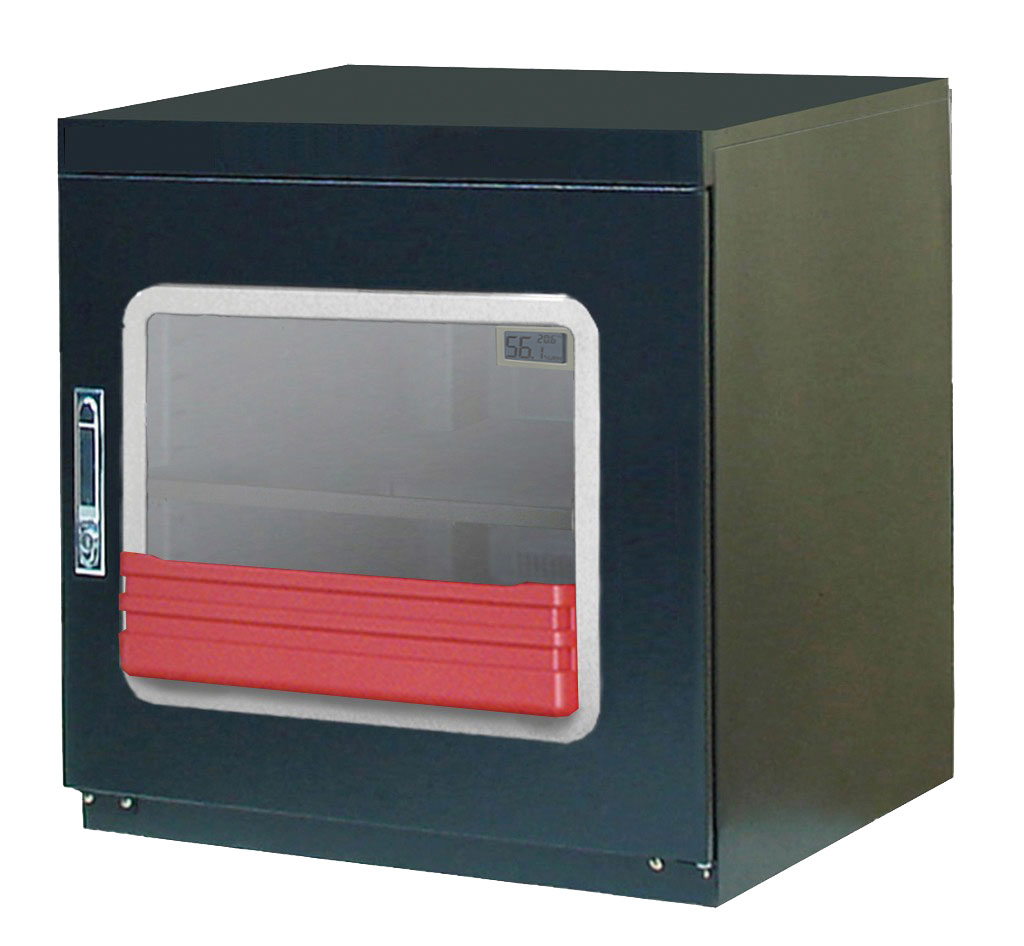

≦5%RH Dry Cabinet X2B-200 No-ESD

Les armoires sèches automatiques de la gamme « low cost » sont conçues pour se stabiliser à un taux d’humidité (RH) ≤ 5% sans réglage conformément aux recommandations de la norme J-STD-033D applicables aux composants CMS sensibles à l’humidité (MSL 2 à 6).
Nos armoires sont de conception modulaire (corps, bloc d’alimentations, afficheur intégrant la sonde, modules déshumidificateurs, étagères…) ce qui permet de changer ou de modifier facilement la configuration de vos armoires.

This product interests you?

You wish to place an order, receive more information about our products, thank you

Contact us

Description:

The dry cabinets from the X2B range are fully auto dry cabinet designed to be stable at ≦5%RH without adjustment according to the J-STD-033D standard for moisture sensitive SMT components (MSL 2 up to 6)

Our Dry cabinets are modular designed (body, power bloc, display with probe, dryer, shelves,…) this allow to easily change or replace the cabinet configuration.


Specifications:

Number of door:

 1 door
Humidity Range: ≦5%RH

External dimensions (L×P×H):

 600 × 672 × 610mm

Capacity:

 245 Liters

Shelves:

 3

Shelves loading capacity:

 100Kg

Display Accuracy:

 ±3%RH – ±1°C

Display set resolution:

 0,1%RH – 0.1°C

Humidity management software:

 Humidity Manager for drawing the curve of RH and Temp

RS-232 port:

 Yes

Alarm:

 Sound and light

Color:

 Black

Structure :

 1mm carbon steel with antistatic paint

Window:

 1 antistatic glass window, grey window frame ,compressing handle and airtight magnetic sealer.

Grounding:

 1.0MΩ (2 meters lenght)

Surface resistance:

 103 ~109 (Surface resistance)

Power consumption:

 Max. 585 Wh – Moy. 105Wh

Power supply:

 230V – 50/60Hz

Accessories:
  • Nitrogen unit (Max nitrogen pressure : 0.2Mpa/2Bars)
  • Flow Meter
  • Flash Alarm
  • Full Doors (specify at the order)
  • Data Logger/Reader (acquire data from RS232 port)
  • Slide shelves
  • Extended bin Red, yellow or gray color
  • Wheels with brakes

*The best performance is achieved under the ambient condition below 25°C and 50%RH.
