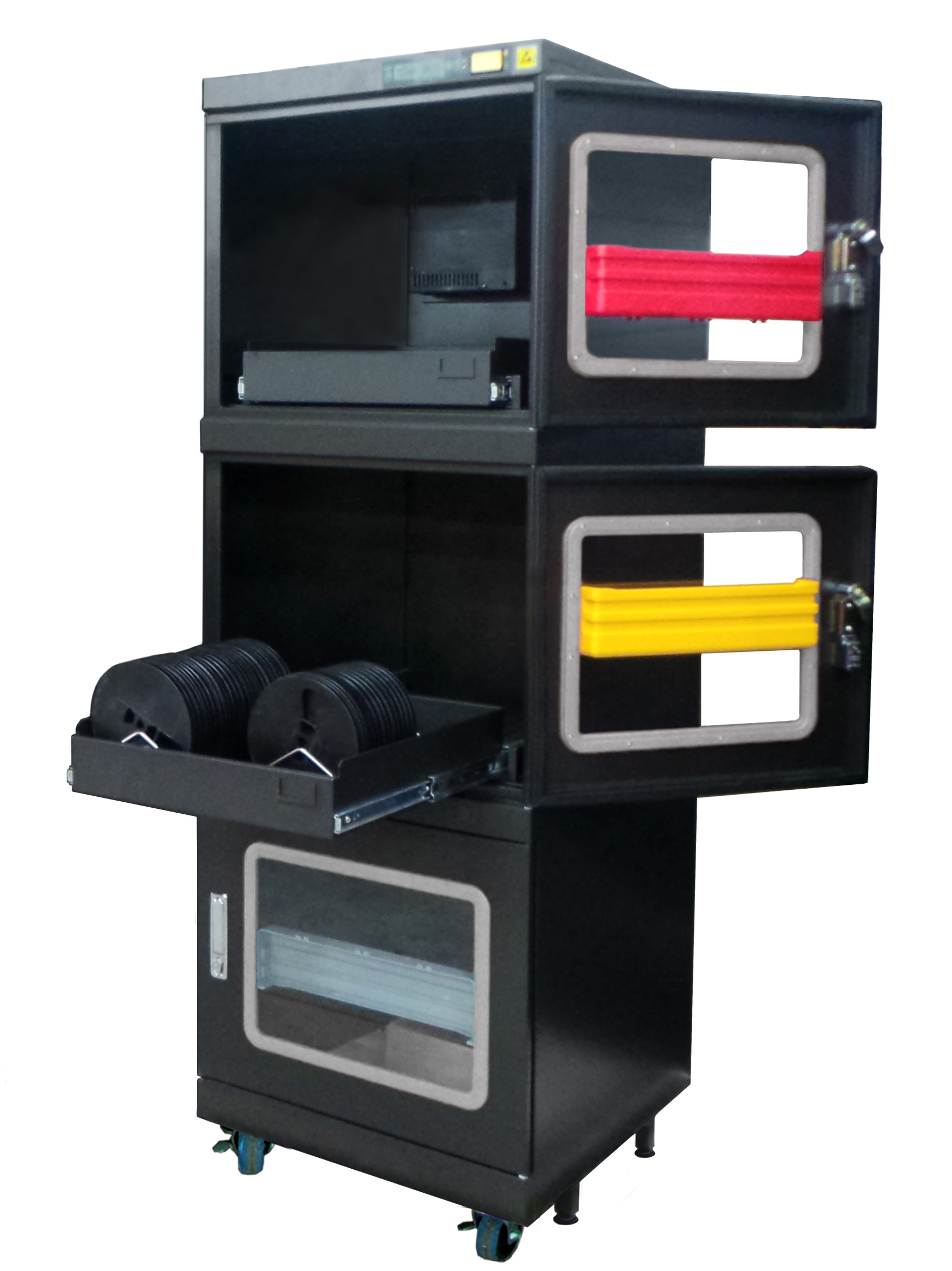

≦5%RH Dry Cabinet X2B-600

Les armoires sèches automatiques de la gamme « X2B » sont conçues pour se stabiliser à un taux d’humidité (RH) ≤ 5% sans réglage conformément aux recommandations de la norme J-STD-033D applicables aux composants CMS sensibles à l’humidité (MSL 2 à 6).
Nos armoires sont de conception modulaire (corps, bloc d’alimentations, afficheur intégrant la sonde, modules déshumidificateurs, étagères…) ce qui permet de changer ou de modifier facilement la configuration de vos armoires.

This product interests you?

You wish to place an order, receive more information about our products, thank you

Description:

The dry cabinets from the X2B range are fully auto dry cabinet designed to be stable at ≦5%RH without adjustment according to the J-STD-033C standard for moisture sensitive SMT components (MSL 2 up to 6)

Our Dry cabinets are modular designed (body, power bloc, display with probe, dryer, shelves,…) this allow to easily change or replace the cabinet configuration.

Specifications:

Number of door:	3 doors
Humidity Range:	≦5%RH
External dimensions (L×P×H):	600 × 672 × 1 815mm
Capacity:	1475 Liters
Shelves:	5
Shelves loading capacity:	100Kg
Display Accuracy:	±3%RH – ±1°C
Display set resolution:	0,1%RH – 0.1°C
Humidity management software:	Humidity Manager for drawing the curve of RH and Temp
RS-232 port:	Yes
Alarm:	Sound and light
Color:	Black
Structure :	1mm carbon steel with antistatic paint
Windows:	3 antistatic glass windows, grey window frames ,compressing handles and airtight magnetic sealers.
Wheels:	4 antistatic 3″ wheels, two of them with brakes
Grounding:	1.0MΩ (2 meters lenght)
Surface resistance:	No ESD
Power consumption:	Max. 585 Wh – Moy. 105Wh
Power supply:	230V – 50/60Hz
Accessories:	Nitrogen unit (Max nitrogen pressure : 0.2Mpa/2Bars) Flow Meter Flash Alarm Full Doors (specify at the order) Data Logger/Reader (acquire data from RS232 port) Slide shelves Extended bin Red, yellow or gray color

*The best performance is achieved under the ambient condition below 25°C and 50%RH.
