Contact usDescription :
W-Tech offers its dry cabinets, specially design for racks feeders storage under controled humidity.

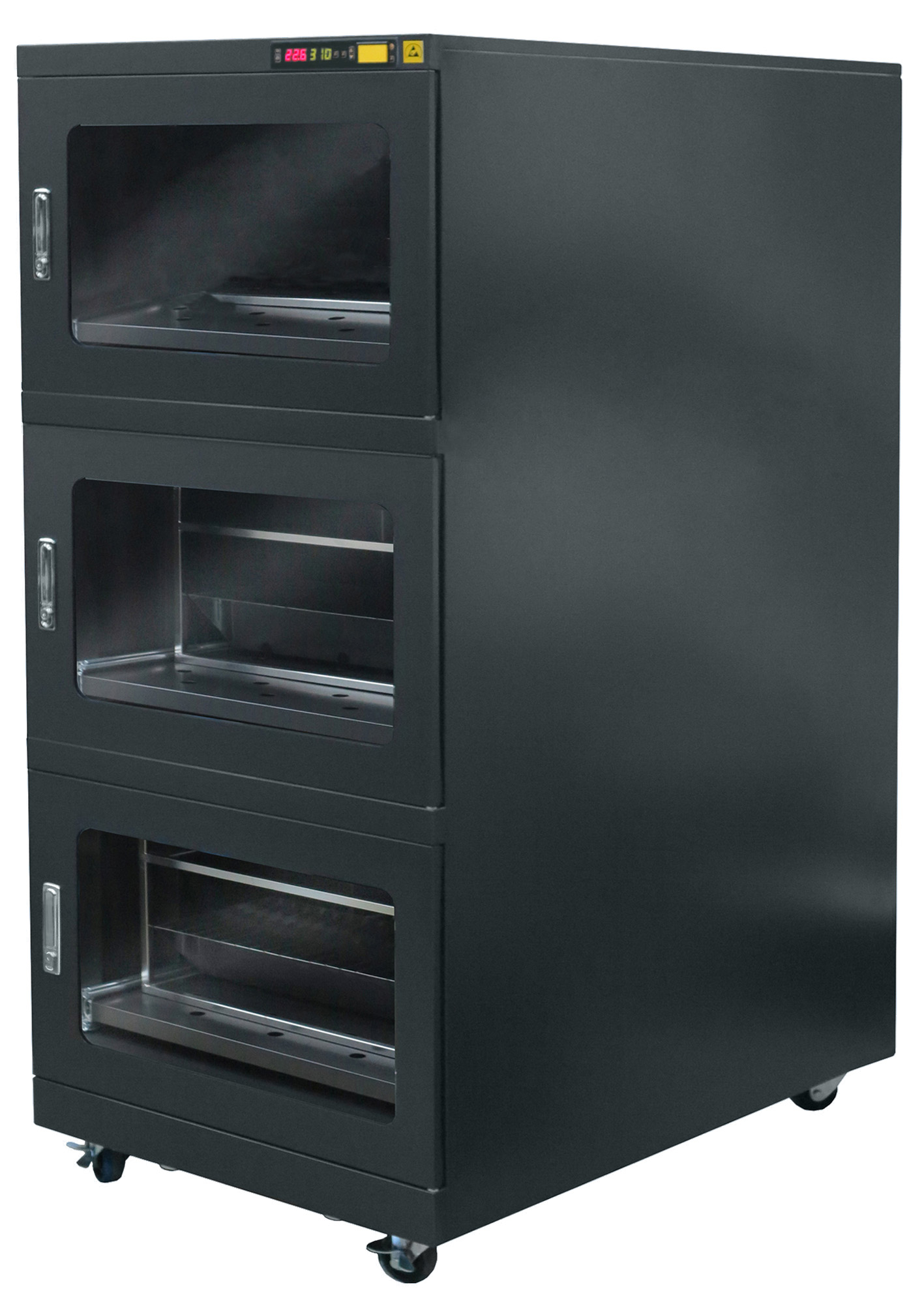

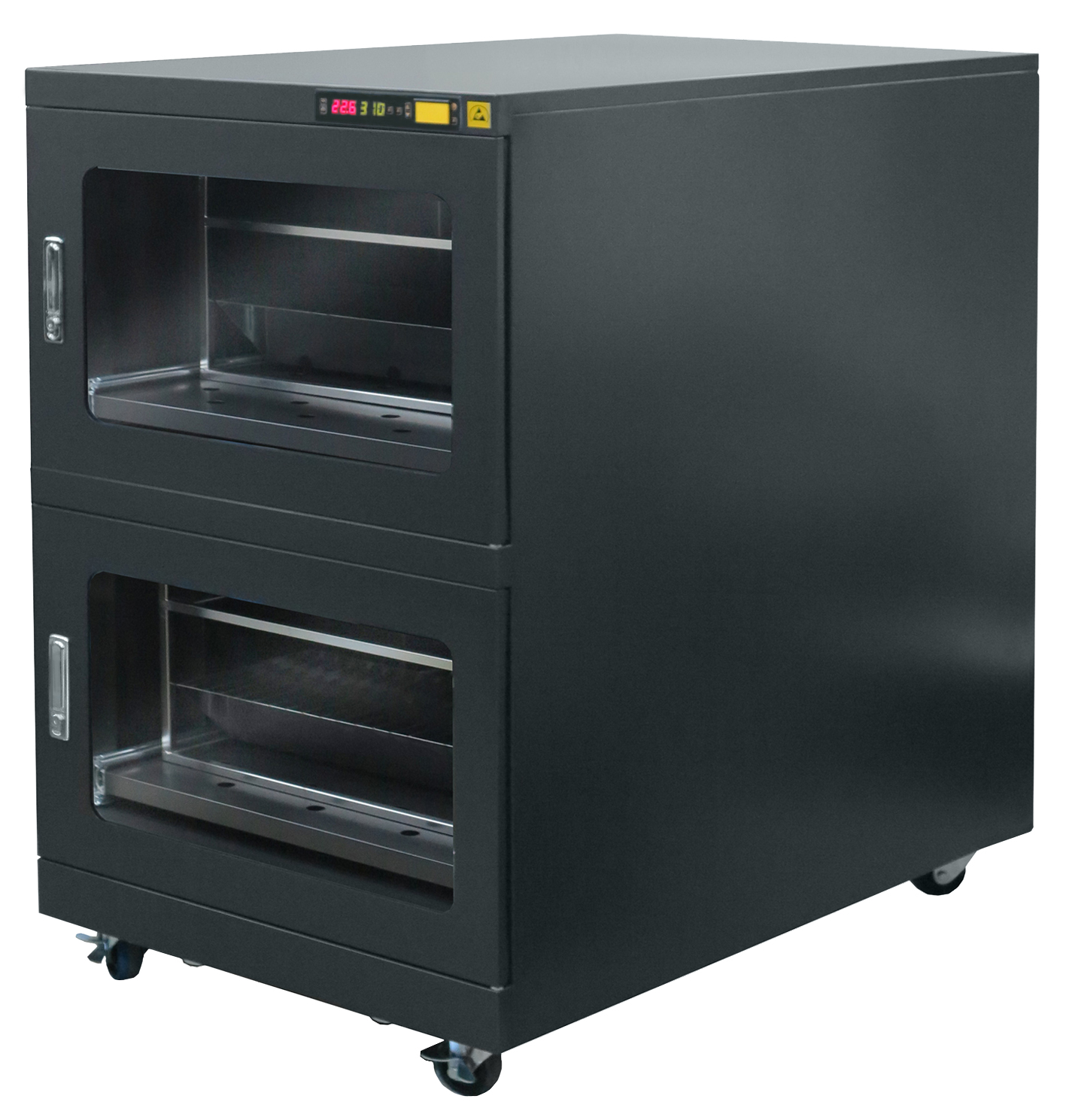

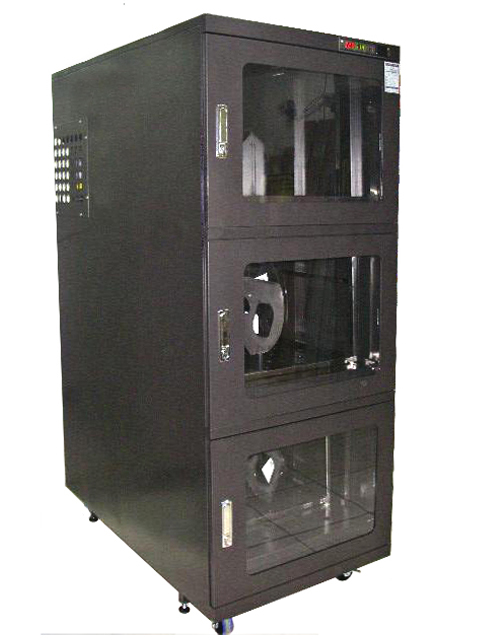

This range of cabinets is available in 2 or 3 doors and is supporting racks of the following brands : ASM (Siemens, Siplace) – Panasonic – Yamaha.
|
Specifications : |
 |
 |
|
Number of doors |
2 doors | 3 doors |
|
Humidity range : |
≦5%RH | |
|
External dimensions : |
L.770 x D.1300 x H.1537mm | L.770 x D.1300 x H.2065mm |
|
Internal dimensions : |
L.768 x D.1150 x H.1256mm | L.768 x D.1150 x H.1860mm |
|
Capacity : |
1110 Liters | 1642 Liters |
|
Shelves : |
2 | 3 |
|
Shelves loading capacity : |
100Kg | |
|

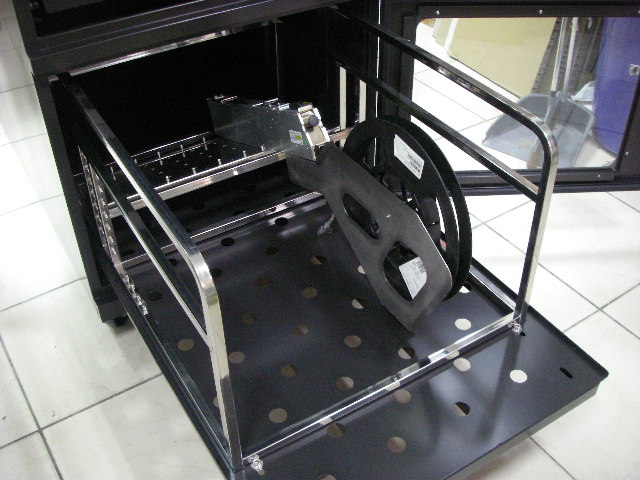

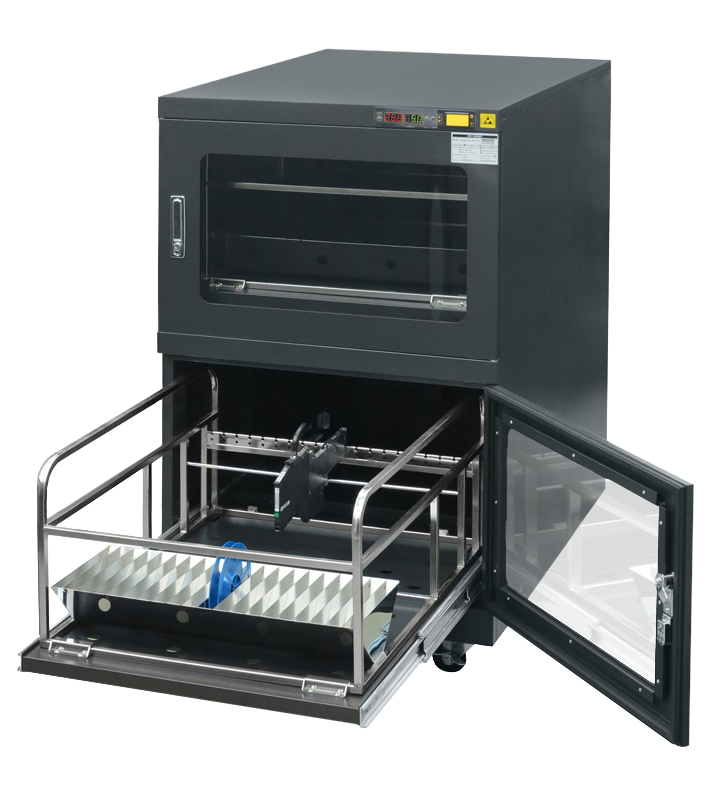

Racks feeders : |
ASM (Siemens – Siplace), Panasonic, Yamaha | |
|
Display accuracy : |
±3%RH; ±1°C | |
|
Resolution : |
0,1%RH; 0.1°C | |
|
Humidity Management Software : |
Humidity Manager for drawing the curve of RH and Temp. | |
|
RS-232 port : |
Yes | |
|
Buzzer and light alarm |
Yes | |
|
Color : |
Black | |
|
Cabinet structure : |
1mm carbon steel with antistatic paint | |
|
Doors : |
2, antistatic glass windows, compressing handle and airtight magnetic sealer | 3, antistatic glass windows, compressing handle and airtight magnetic sealer |
|
Wheels : |
4 3” wheels two of which with brakes | |
|
Grounding wire : |
1.0MΩ (2 meters lenght) | |
|
Static Dissipative Range : |
103 ~109 (surface Resistance) | |
|
Power consumption : |
Moy. 105W/h – Max. 305W | |
|
Voltage : |
230V – 50/60Hz | |
*The best performance is achieved under the ambient condition below 25°C and 50%RH.
Accessories :
 |
 |
 |
| Data logger / reader | Flash alarm | Nitrogen (Max nitrogen pressure : 0.2Mpa/2Bars) |
