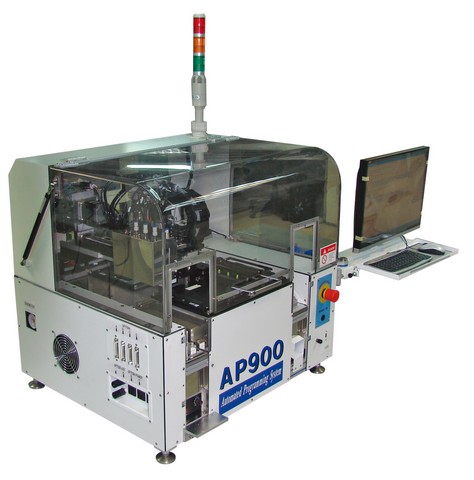

Automated programming system AP 900

Video Automated programming system AP 900

Caractéristiques

• Bench-top layout in compact dimension
• Proprietary 4-nozzle gantry for handling 4 devices at each programming cycle
• Up to 16 (4 sockets x 4 sites) programming sockets
• Throughput up to 600 units per hour for programming time of 60 seconds or less
• Easy-to-use “Teach” mechanism with minimum overheads for change-over
• Adjustable pushers driven by stepping motors for reliable socket actuations

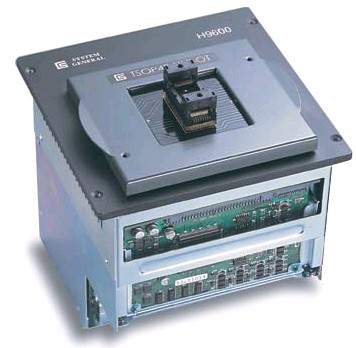

• 4-site H9800 Universal Programmers with 16 Gbits of RAM on each programmer
• Insertion alignment for pick-up offset by “Precisor” or dual CCD cameras
• Default manual tray input/output interface
• Optional tape (reel) and tube input/output interfaces

Spécifications AP900

Placement and General Information

• Placement accuracy: ±0.05 mm
• Placement repeatability: ±0.03 mm
• Placement force: 95 grams
• Pick-and-place method: Four vacuum nozzles
• Component detection: vacuum sensor
• Dimension: 64(L) x 75(W) x 67(H) cm;
• 25.2(L) x 29.5 (W) x 26.4 (H) inch
• Shipping dimension: 99(L) x 137(W) x 82(H) cm;
• 39.0(L) x 53.9(W) x 32.3 (H) inch
• Net Weight: 130 kgs (286 lbs)
• Shipping Weight: 180 kgs (396 lbs)
• Safety: CE compliant

Placement System

• X-Y axes driving system: Stepping motor
• X axis resolution: 3.125 um
• Y axis resolution: 3.125 um
• X-Y axes repeatability: 0.030 mm
• X-axis maximum velocity: 200 mm/sec
• Y-axis maximum velocity: 200 mm/sec
• Z-theta driving system: Stepping motor
• Z axis resolution: 0.625 um
• Z axis repeatability: 0.020 mm
• Z axis maximum velocity: 30 mm/sec

Alignment System

• Gantry: 4-nozzle gantry
  Alignment Mechanism: Dual CCD cameras or mechanical Precisors for insertion alignment

Programming System

• Programming sockets: up to 16 sockets
• Device support: EPROM, EEPROM, Flash,
  Microcontrollers, PLD, CPLD, FPGA and more.
• Package types: Supports Standard and Nonstandard
  (Custom) Package Types
• H9800 RAM buffer: 16 G-bits standard
• Communication: USB
• Safety: CE compliant

System Software

• User interface: Windows-based HMI
• Operating system: Windows XP

Operating Requirements

• Input voltage: 220 VAC, Single-phase, 3-wires.
• Input line frequency: 50/60Hz
• Power consumption: 0.6 KVA
• Compressed air pressure: 75 ~ 95 PSI
• Air flow: 80 liters/min (Peak)
• Operation temperature range: 15 ~ 30°C (59~ 86°F)
• Relative humidity: 35% ~ 90%
• Bench loading weight: 500 kgs or above is recommended

Optional Subsystems

Tape and Tube input/output interfaces
